Condition:
New

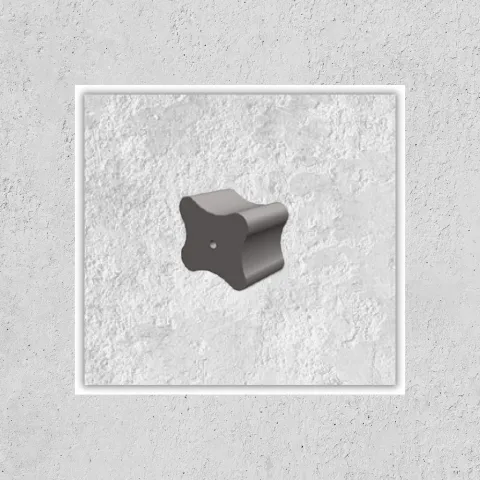

Fiber Additive Multi-Size Concrete Spacer
Fiber Additive Multi-Size Concrete Spacers
FYFBM type concrete spacer is used without wire in horizontal applications and is tied to reinforcing steel through the centre hole with binding wire in vertical applications. One product contains 4 different spacer sizes.
The spacer-height range is 20-60 mm. The model table lists 20/25/30, 30/40, 35/40/50 and 45/55/60 size combinations.
Technical Table
| Code | Spacer Height (mm) | Thickness (mm) | Weight (kg/100) | Pack Qty | Pallet Qty | Pallet Weight (kg) |
|---|---|---|---|---|---|---|
| FYFBM202530 | 20/25/30 | 20 | 2.8 | 750 | 30000 | 860 |
| FYFBM3040 | 30/40 | 24 | 7.5 | 250 | 10000 | 800 |
| FYFBM354050 | 35/40/50 | 24 | 9.3 | 250 | 10000 | 950 |
| FYFBM455560 | 45/55/60 | 28 | 16 | 125 | 5000 | 820 |
